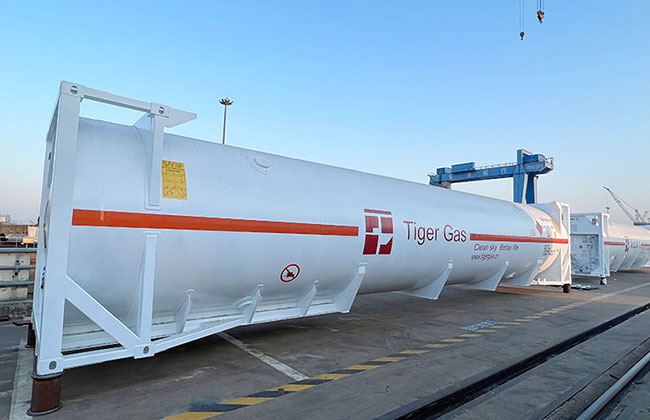

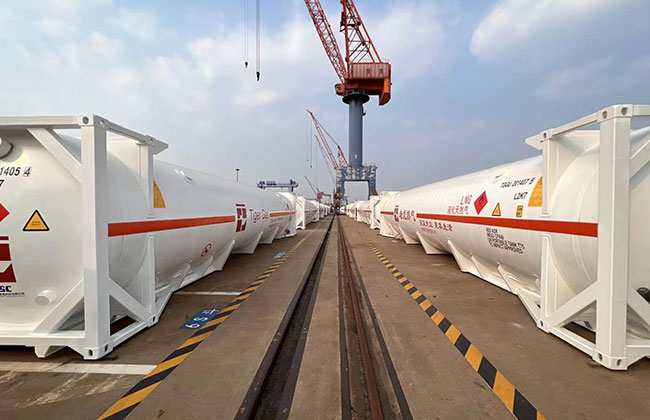

ISO LNG Tank-Containers
The most outstanding character of ISO LNG Container is to realize multiple transportation of LNG among land,railway and ocean. ISO An LNG tank has two containers, an inner tank container in S30408/ASTM-SA-240-304 stainless steel , and an outer tank in Q345R/SA-516Gr70N carbon steel. Plus they have multi-layered vacuum-insulated pressure tanks, supported by double-walled transport tanks. Hence, allowing them to hold LNG at temperatures of -162ºC (-260ºF). Our ISO LNG Container is suitable for long-distance lossless LNG transportation.
Main Features

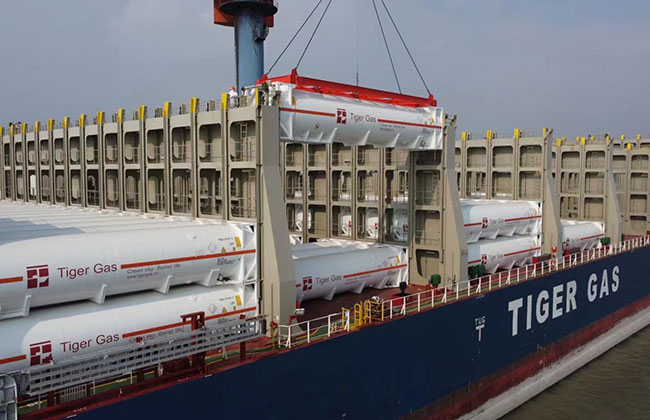

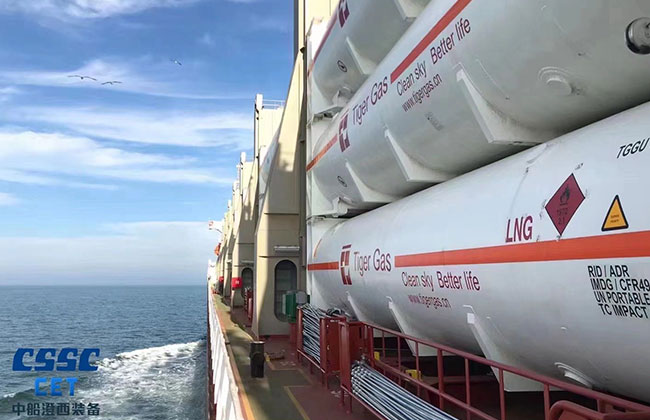

Built with the ISO standards, suitable for multi- modes,like railway, truck, sea transportation
Thermal insulation with high vacuum and multilayer
Vary in Size 20ft, 40ft, 45ft or customized
Design temperature: -196, +50ºC
Wrapped the heat insulating and reflective film, extended storage times
Equipped eight reinforcing ring to improving strength
Holding time: >90 days
The tank containers can be designed and manufactured as users demands
CSC, IMDG, DOT, RID, ADR, TPED, LR, ASME, TC approved
